Antenna PCB Assembly

How can the performance consistency of high-frequency antennas be guaranteed in mass production?

As a PCB assembly manufacturer with years of experience, we deeply understand the special requirements of antenna PCBs in terms of performance, reliability, and consistency. The following are the core values and technical guarantees that our factory can provide during the antenna PCB assembly process:

I. Key Guarantees for Special Processes of Antenna PCBs

1. Professional Handling of High-Frequency Materials and Special Substrates
Antenna PCBs often use high-frequency materials, such as Rogers and Taconic. We strictly control the storage, baking, component placement, and reflow soldering temperature profiles of these materials to avoid changes in the dielectric constant caused by thermal stress or moisture absorption, which would affect antenna performance.
2. Precise Placement of Fine-Pitch Components and RF Devices
Antenna circuits often include RF components, filters, couplers, and other components in 0402/0201 or even smaller sizes. We use high-precision placement machines, such as ASM and Fuji placement machines, and strict process control to ensure the soldering yield of tiny components and to avoid impedance mismatch caused by offset or tombstoning.
3. Soldering Reliability of Antenna Feed Points and Grounding Structures
The feed points and grounding pins of antennas have extremely high requirements for impedance continuity. By optimizing stencil aperture design and using stepped stencils or local thickening of solder paste printing, we ensure that the solder volume at key connection points is sufficient and uniform, reducing signal loss.


II. Quality Control and Testing During Assembly

1. Impedance Continuity Management

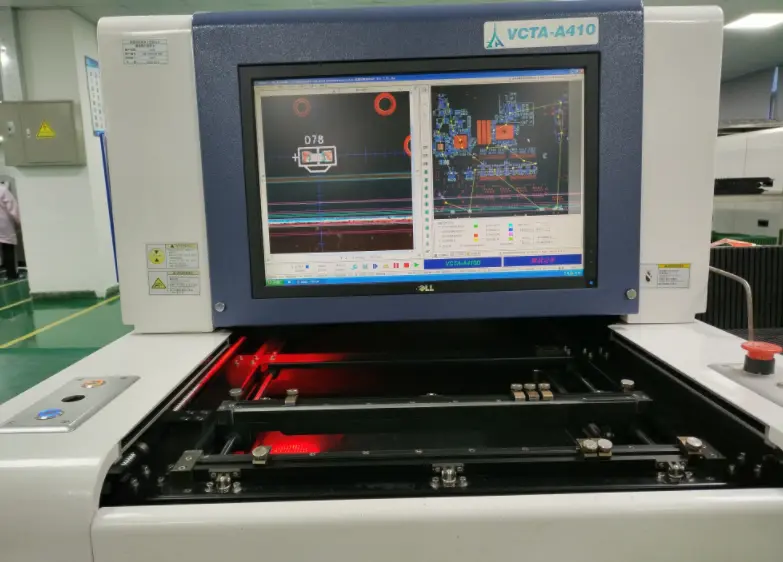

Real-time monitoring of soldering quality during the SMT process is conducted through SPI (Solder Paste Inspection) and AOI (Automated Optical Inspection) to ensure that there are no issues, such as false soldering, bridging, or solder beads, on the antenna traces and connection points, thus preventing impedance discontinuities.

2. Specific Testing of Radio Frequency Performance
Radio frequency test fixtures, such as antenna radiation efficiency testing and S-parameter testing, are provided to directly verify key indicators, including antenna bandwidth and return loss, after assembly, ensuring that the electrical performance meets design expectations.
3. Environmental Reliability Verification Support
To address the stability requirements of antennas under temperature variations, we can assist in conducting environmental stress screenings, such as thermal cycling tests and high-temperature and high-humidity aging, to expose potential soldering or material defects in advance.

III. Supply Chain and Production Synergy Advantages

1. Management of Dedicated Antenna Materials
We assist clients in managing special materials such as radio frequency devices, coaxial connectors, and shielding covers, providing anti-oxidation storage and moisture-sensitive device (MSD) control to prevent performance degradation due to improper storage.
2. Flexible Production and Rapid Response Capability
Antenna PCBs often involve small-batch, multi-variety R&D or rapid iteration. We support flexible production line configurations to enable quick changeovers, sample production, and engineering verification (EVT/DVT) in coordination with clients.

IV. Quality Commitment and Traceability System

*Full-process barcode traceability, from solder paste batch to component location, ensures that the process data for each antenna PCB is traceable.
*Certified by ISO9001/IATF16949 and other systems, we strictly control ESD protection, cleanliness, temperature, and humidity to ensure that the production environment for radio frequency products meets standards.

Summary

Our factory, Kingsheng PCBA, ensures that antenna PCBs maintain consistent electrical performance, high reliability, and mass production stability after assembly through high-frequency process experience, refined process control, RF testing capabilities, and supply chain collaboration.
Whether it's consumer electronics (such as mobile phone/Wi-Fi antennas), IoT devices, or automotive radar antennas, we can provide end-to-end manufacturing solutions to help customers shorten R&D cycles and enhance product market competitiveness.

Shenzhen Kingsheng Technology Co., Ltd. has rich experience and a professional technical team in PCBA. Contact KingshengPCBA today to request a quote or discuss your PCBA project.
