Electric Wheelchair PCB Assembly

How to produce high-quality electric wheelchair PCBAs?

As a professional PCB assembly manufacturer, we deeply understand that the reliability, safety, and stability of PCBA for electric wheelchairs are of utmost importance, as they are directly related to the safety and user experience. Our entire operational system is dedicated to producing high-quality, highly reliable electric wheelchair control PCBAs for you. The following are the processes we can implement for your electric wheelchair PCBA during assembly:

1. High-Standard, High-Reliability Production Processes

Advanced Soldering Processes:
Precision Solder Paste Printing: High-precision SPI (Solder Paste Inspection) is used to perform 100% inspection of printing quality, ensuring the uniformity and consistency of soldering and preventing open circuits and short circuits.
Nitrogen Reflow Soldering: For main control boards, driver boards, etc., nitrogen reflow soldering is used, which can significantly reduce soldering oxidation and improve the quality of solder joints and the long-term reliability of electrical connections.
Selective Wave Soldering: For boards with through-hole components (such as connectors and large capacitors), selective wave soldering is employed to avoid thermal stress impact and ensure soldering strength.

Conformal Coating Process:
Professional Coating: In response to the humid, condensation, and dusty environments that electric wheelchairs may encounter, we offer professional conformal coating services. The coating thickness and coverage rate are strictly controlled in accordance with process requirements to provide lasting protection for the PCBA.

High Stress Point Reinforcement:
For areas subject to mechanical stress or frequent plugging and unplugging, such as motor power interfaces and battery terminals, dispensing reinforcement services can be provided to prevent solder joints from cracking due to vibration.


2. Comprehensive and Stringent Testing and Quality Control

In-Line Automated Testing:

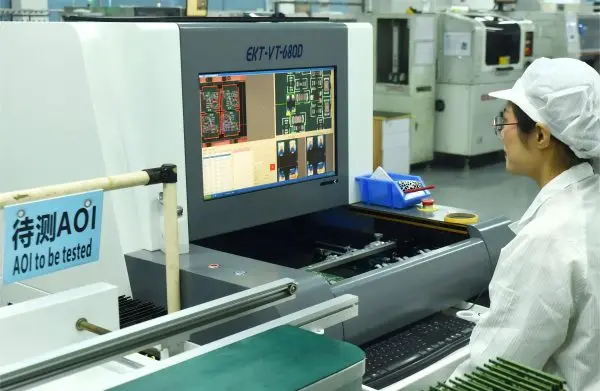

AOI (Automated Optical Inspection): 100% post-solder inspection for accurate detection of missing components, incorrect parts, polarity reversals, solder defects, and other anomalies.
ICT (In-Circuit Test): Customizable bed-of-nails testing for rapid assessment of circuit board electrical performance, short circuits, and open circuits.


Functional and Burn-In Testing:
Customized FCT: Based on your provided test plan, we construct test fixtures that simulate real-world operating conditions (e.g., simulated motor loads, sensor inputs, button operations) to perform program burning and full functional testing on each PCBA.

Burn-In Testing:
For electric wheelchair PCBAs, we strongly recommend and can provide powered burn-in testing. This subjects the PCBA to prolonged simulated operation at elevated or ambient temperatures to identify early-life component failures, ensuring that shipped products have entered the stable period of the "bathtub curve."

Reliability inspection:
Vibration tests, temperature and humidity cycling tests, etc., can be conducted in accordance with relevant standards to verify the product's tolerance to harsh conditions.


3. Full-Process Traceability and Quality Management System

Barcode Tracking System: Starting from SMT material loading, a unique barcode is bound to each PCB or batch. The entire process data of production, testing, and repair is recorded to achieve full life cycle traceability.

Compliance with Industry Standards: Our factories are typically certified to the ISO 9001 quality management system and follow international standards such as IPC-A-610 (Acceptability of Electronic Assemblies) for production and inspection, especially Class 2 (Dedicated Service Electronic Products) or Class 3 (High-Performance Electronic Products) standards, which are the required levels for electric wheelchairs.

ESD and Clean Environment: The entire production area implements strict electrostatic discharge (ESD) protection and temperature/humidity control to safeguard sensitive semiconductor devices.

In summary, we, KingshengPCBA, are dedicated to becoming your "high-quality, high-reliability electric wheelchair control PCBA manufacturing supplier." Through systematic engineering capabilities, stringent process controls, in-depth testing and verification, and a complete traceability system, we ensure that every PCBA delivered to you embodies a commitment to user safety and reliably drives the wheelchair to execute every forward, turning, and stopping command.
