Security Surveillance Camera PCB Assembly

From Circuit Board to Intelligent Eye: The Precision PCBA Technology Behind Security Cameras

The true intelligence of a high-performance security camera is not solely in its lens but, more critically, in the sophisticated Printed Circuit Board Assembly (PCBA) that powers it. Serving as the camera's "brain" and "nervous system," the PCBA plays a pivotal role in determining image quality, operational stability, and advanced intelligent functionality. This article explores the technical requirements of security camera PCBAs and how top-tier PCBA factories transform these specifications into reliable production capabilities.


Part 1: Core Technical Requirements

Designing a security camera PCBA is a highly integrated process that involves the seamless management of multiple complex signals within a limited space:

High-Definition Imaging Core: The mainboard must integrate a high-performance Image Signal Processor (ISP) capable of supporting H.265/H.264 encoding, ensuring the processing of video streams up to 4K or higher resolutions. Additionally, hardware acceleration units are required to support advanced algorithms, such as Wide Dynamic Range (WDR) and 3D Noise Reduction, for superior image quality.

Precision Power and Thermal Management: A multi-channel, high-efficiency, low-noise DC-DC power design is crucial for providing stable, clean power to various components, including the image sensor, processor, IR LEDs, and motors. At the same time, careful layout and thermal management are essential, utilizing metal-core PCBs or heat dissipation modules to guarantee long-term stability across a wide temperature range (-30°C to 70°C).

Ruggedized Interface and Reliability: The PCBA design must incorporate protective circuits against lightning strikes and power surges, and network interfaces must meet Power over Ethernet (PoE) standards. To withstand harsh outdoor conditions, the PCBA must be coated with conformal coating, safeguarding it against moisture, mold, and corrosion.

Part 2: Factory Production Capabilities

Exceptional design requires precision manufacturing to bring it to life. A qualified PCBA factory for the security industry must demonstrate the following production capabilities:

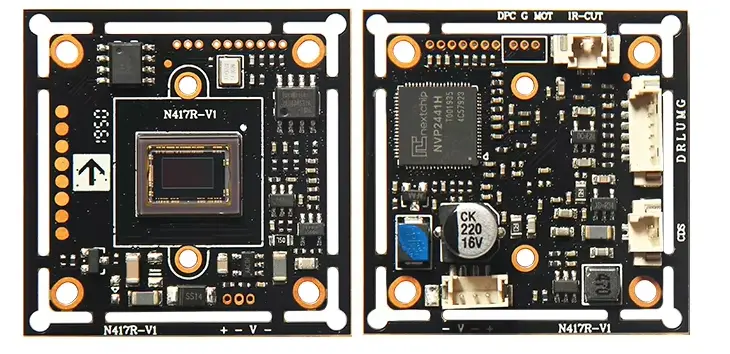

High-Precision and Mixed-Technology Assembly: Camera mainboards often feature fine-pitch BGA-packaged main controllers and image sensors. Factories need to achieve high placement accuracy for micro-components (such as 01005) and possess X-ray inspection capabilities to ensure high-quality soldering. The ability to manage Mixed Technology (Through-Hole & SMT) assembly is also essential for connecting power and interface components.

Specialized Processes and Quality Control: Key process control steps include traceability programming (for barcodes/QR codes), maintaining clean and dust-free assembly environments for optical sensors, precise alignment and bonding of the IR-cut filter to the image sensor, and automated final testing to verify image quality, white balance, and consistency.

End-to-End Quality and Reliability Verification: The production process involves rigorous inspection, starting with incoming component checks, followed by First Article Inspection (FAI), In-Circuit Testing (ICT), and Functional Testing (FVT). Finished products must undergo reliability tests, such as thermal cycling, vibration testing, and extended burn-in, simulating real-world conditions to ensure every camera is field-ready.


Conclusion

The reliability of a security camera begins with a well-designed and flawlessly manufactured PCBA. It is not just a collection of components but a convergence of optics, electronics, thermal management, and software algorithms. For security device manufacturers, partnering with a PCBA manufacturer that demonstrates expertise in high-precision SMT, specialized processes, rigorous quality control, and robust supply chain management is crucial for producing stable, clear, and intelligent "visual gateways." In today's world of intelligent security, the clarity and reliability of what we see depend on the silent power of underlying PCBA technology and manufacturing excellence.
