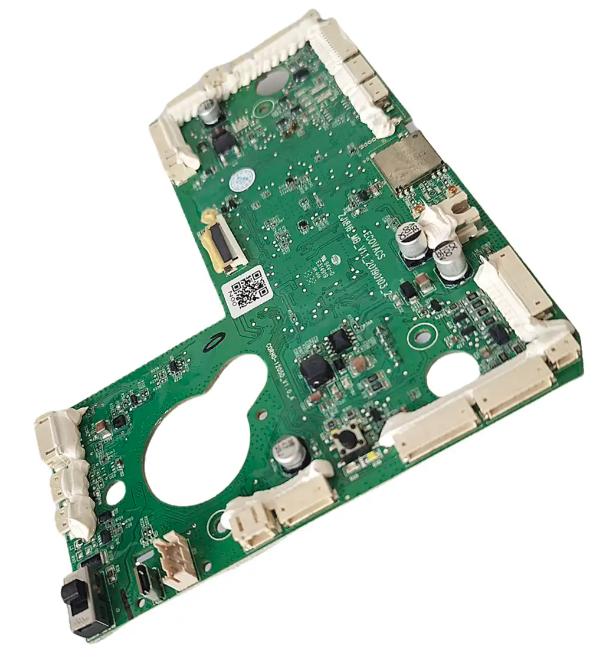

Robot Vacuum Cleaner PCB Assembly

Introduction

The Robot Vacuum Cleaner (RVC) has revolutionized home automation with its ability to clean autonomously. At the core of every high-performance RVC lies its Printed Circuit Board Assembly (PCBA), which integrates sensors, processors, power management, and communication modules. As a PCBA manufacturer specializing in smart home devices, we understand the critical role of precision assembly in ensuring reliability, efficiency, and durability.

This article explores the key aspects of Robot Vacuum Cleaner PCB Assembly, covering design considerations, component selection, manufacturing challenges, and future trends.




1. Key PCB Components in Robot Vacuum Cleaners

A high-quality RVC PCBA requires seamless integration of multiple subsystems:

1.1 Microcontroller Unit (MCU) & Processing Modules
The MCU (e.g., ARM Cortex-M or RISC-V-based chips) serves as the brain, processing sensor data and executing cleaning algorithms.
Advanced models may include AI accelerators for object recognition and path optimization.

1.2 Sensor Integration
LIDAR & ToF Sensors – Enable 360° mapping and obstacle avoidance.
Gyroscopes & Accelerometers – Assist in navigation and fall prevention.
Infrared & Bumper Sensors – Detect obstacles and prevent collisions.

1.3 Power Management & Battery Control
Efficient DC-DC converters and Li-ion battery management systems (BMS) extend runtime.
Low-power modes ensure energy optimization during standby.

1.4 Motor Control & Drive Circuits
Brushless DC (BLDC) motor drivers control suction and wheel movements precisely.
PWM (Pulse Width Modulation) ensures smooth speed adjustments.

1.5 Wireless Connectivity (Wi-Fi/Bluetooth/Zigbee)
Enables remote control via smartphone apps or voice assistants (Alexa, Google Home).
Firmware updates (OTA) improve functionality over time.


2. PCB Design Considerations for Robot Vacuums

2.1 High-Density Interconnect (HDI) PCBs
Due to space constraints, 4-6 layer PCBs with fine-pitch components are common.
Impedance control is crucial for high-frequency signals (Wi-Fi, LIDAR).

2.2 Thermal Management
Heat sinks & thermal vias prevent overheating in motor drivers and processors.
Proper copper pour techniques enhance heat dissipation.

2.3 EMI/EMC Compliance
Shielding cans and ground plane optimization minimize interference.
Compliance with FCC, CE, and RoHS standards is mandatory.

2.4 Vibration & Shock Resistance
Conformal coating protects against dust and moisture.
Mechanical reinforcements (e.g., edge plating) prevent solder joint failures.


3. Manufacturing Challenges & Solutions

3.1 Component Sourcing & Supply Chain
Shortages of MCUs and sensors require alternative sourcing strategies.
Working with trusted suppliers ensures quality and lead time reliability.

3.2 SMT Assembly & Fine-Pitch Soldering
Automated pick-and-place machines handle tiny components (0402, 0201 sizes).
Reflow soldering profiles must be optimized for mixed-component boards.

3.3 Testing & Quality Assurance
Automated Optical Inspection (AOI) detects soldering defects.
Functional testing verifies motor control, sensors, and wireless connectivity.


4. Future Trends in RVC PCB Assembly

AI-Enhanced Navigation – More powerful edge computing for real-time decision-making.
Modular PCB Designs – Swappable battery/sensor modules for easy upgrades.
Sustainability – Lead-free soldering and recyclable materials.


Conclusion

The Robot Vacuum Cleaner PCBA is a sophisticated system requiring expertise in high-density PCB design, sensor integration, and reliable manufacturing. As demand for smarter, more efficient RVCs grows, PCBA manufacturers must stay ahead in miniaturization, thermal management, and AI integration.

At KingshengPCBA, we specialize in high-reliability PCB assembly for smart home devices, ensuring performance, durability, and compliance with global standards. Contact us today to discuss your next RVC PCB project!

Contact us today to discuss your project's BOM and specifications!
