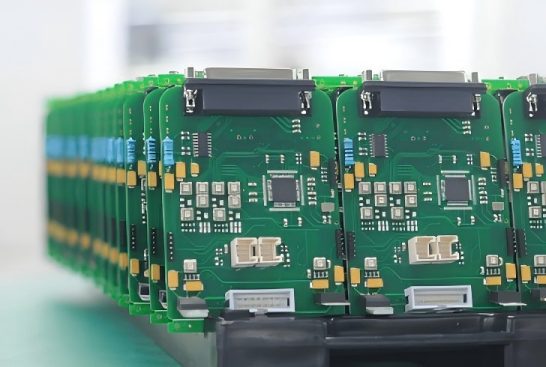

How to Ensure the High Reliability of Blood Pressure Monitor PCBA?

When you conceive the next-generation blood pressure monitor product, have you ever deeply considered these scenarios: How to ensure the equipment remains as accurate as ever through countless presses by users? How to avoid misreading and provide stable medical-grade data in complex electromagnetic environments? And how to find the optimal balance between miniaturization and high performance?
The answers to these questions not only stem from your excellent circuit design and solution selection but are also deeply rooted in the entire process of PCBA from design to mass production. Today, we would like to discuss with you, from the perspective of PCB assembly manufacturing, the "invisible" qualities that are critical to the lifeline of the blood pressure monitor PCBA.


1. Signal Integrity and Weak Signal Processing

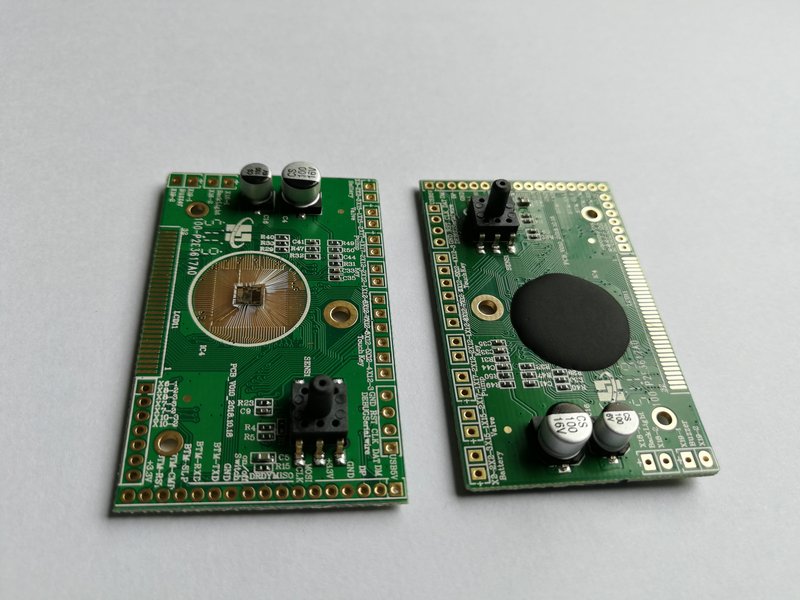

The core of a blood pressure monitor lies in the capture and conversion of micro-pressure signals generated by Korotkoff sounds or the oscillometric method.
This requires that the PCBA have extremely low noise and excellent signal integrity.
Layout and routing: Isolation and protection of analog signal acquisition areas (such as sensors and amplifier peripheries) are critical. Our engineering team will collaborate with you to conduct DFM analysis before manufacturing, ensuring that sensitive traces are kept away from noise sources such as digital clocks and power sources, and that grounded shield layers are used to construct a "silent defense line" for your precision design.

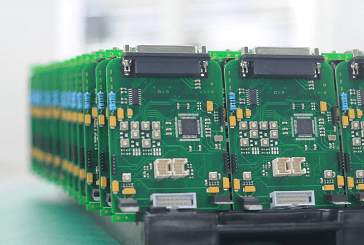

Component selection and soldering quality: High-precision, low-temperature drift resistors and capacitance are the cornerstone of ensuring measurement accuracy. Our precision solder paste printing technology and multi-stage reflow soldering curve control ensure that even the solder joints of tiny passive components in 0201/01005 packages are full and consistent, fundamentally eliminating parameter drift caused by virtual soldering or thermal stress.

2. Medical-grade Reliability and Consistency
Home blood pressure monitors may be used several times a day, and their reliability is directly related to user health. We understand that a "99.9% yield rate" for medical products implies a risk of one in ten thousand, which is unacceptable.
Ultimate process Control: For connectors, shields, and other components that may be present in blood pressure monitors, we introduce selective wave soldering to replace traditional manual soldering, eliminating human uncertainty. Full nitrogen atmosphere reflow soldering minimizes pad oxidation and enhances solder joint lifetime and mechanical strength.
Comprehensive Testing and Traceability: From solder paste inspection (SPI) to monitoring the printing of each stencil, to automated optical inspection (AOI) for 3D modeling and judgment of each solder joint, and then to in-circuit test (ICT) or flying probe test for PCBA function, we have built a complete quality data chain.
Each blood pressure monitor PCBA possesses traceable identification information, providing solid data support for the entire product lifecycle management.


3. Cleanliness and Biocompatibility
Medical PCBA, differing from consumer electronics, has stringent requirements for the cleanliness of the production environment and chemical residues.

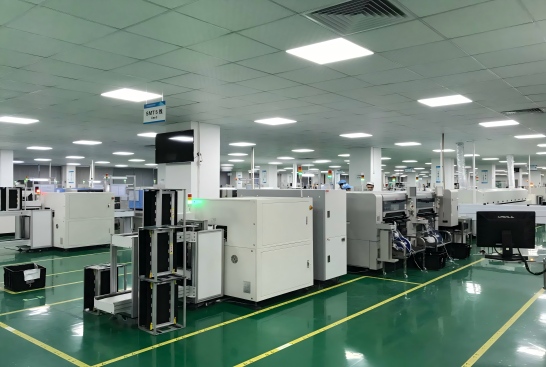

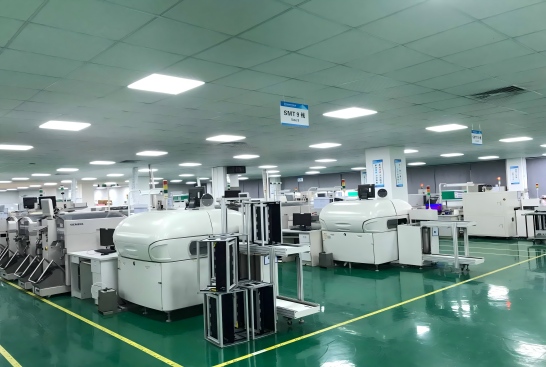

Clean Production Environment: Our dedicated production line for medical products achieves a class 10,000 cleanroom standard, effectively preventing airborne dust, fibers, and other contaminants from damaging the boards.
Low Ionic Residue Cleaning: For blood pressure monitor PCBAs with specific requirements, we utilize high-purity deionized water in conjunction with environmentally friendly cleaning agents for in-line cleaning. This ensures that post-soldering ionic residues are far below medical standards (e.g., <1.0 μg/cm² NaCl equivalent), preventing short circuits or performance degradation due to electrochemical migration in the future.

4. From DFM to Supply Chain Support
We deeply understand that engineers' creativity needs to be precisely realized. Therefore, we prefer to be an extension of your R&D chain.
In-depth DFM/DFA Analysis: Prior to mass production, we will provide detailed manufacturability and assembly reports, offering professional suggestions on component spacing, thermal design, test point layout, etc. We will work with you to optimize the design and improve the first pass yield and reliability.
Stable Supply Chain System: We cooperate with top global component manufacturers and authorized distributors to ensure that the source of materials is authentic and traceable. At the same time, a strict incoming quality control (IQC) system filters out all potential risks for you.


Conclusion
In this crucial area of the blood pressure monitor, which is related to one's health, each solder joint and each trace carries the weight of life.
While we may not directly design circuits, we are committed to leveraging our manufacturing expertise and dedication to transform your ingenious hardware solutions into millions of stable, reliable, and trustworthy medical products.
When your next blood pressure monitor design seeks a manufacturing partner, we, Kingsheng PCBA, look forward to engaging in in-depth discussions with you, jointly contributing manufacturing capabilities to precision medicine.
